Introduction
This vignette walks through a complete sediment grain-size analysis
with grainsizeR. The examples use package data stored in
inst/extdata.
For more detail on table layouts versus measurement setups, including the dry-sieve and sieve + hydrometer example files, see the table layouts and measurement workflows vignette.
Reading Long-Format Data
Long-format input has one row per sample and grain-size class.
long_file <- system.file("extdata", "grain.long.csv", package = "grainsizeR")
gs <- read_gsd(
long_file,
format = "long",
sample_col = "sample",
size_col = "size",
value_col = "proportion",
size_unit = "mm",
value_type = "proportion"
)
head(gs)
#> # A tibble: 6 × 13
#> sample_id bin_id raw_size_um size_lower_um size_upper_um size_mid_um
#> <chr> <int> <dbl> <dbl> <dbl> <dbl>
#> 1 S01 1 2000 2000 NA NA
#> 2 S01 2 1000 1000 2000 1414.
#> 3 S01 3 500 500 1000 707.
#> 4 S01 4 250 250 500 354.
#> 5 S01 5 125 125 250 177.
#> 6 S01 6 63 63 125 88.7
#> # ℹ 7 more variables: size_mid_phi <dbl>, retained_percent <dbl>,
#> # cum_finer_percent <dbl>, cum_coarser_percent <dbl>, is_open_lower <lgl>,
#> # is_open_upper <lgl>, measurement_method <chr>Reading Wide-Format Data
Wide input stores size classes in rows and samples in columns.
Terminal fine rows such as <0.0625 in a strict
Wentworth-style example are supported and become open-ended fine
classes. G2Sd-style wide tables often store particle sizes in row names
and samples in columns. Convert row names to a size column and use
size_unit = "auto" or size_unit = "um" when
importing micrometre-scale labels.
wide_file <- system.file("extdata", "grain.wide.csv", package = "grainsizeR")
gs_wide <- read_gsd(
wide_file,
format = "wide",
size_col = 1,
size_unit = "mm",
value_type = "percent"
)
head(gs_wide)
#> # A tibble: 6 × 13
#> sample_id bin_id raw_size_um size_lower_um size_upper_um size_mid_um
#> <chr> <int> <dbl> <dbl> <dbl> <dbl>
#> 1 S01 1 2000 2000 NA NA
#> 2 S01 2 1000 1000 2000 1414.
#> 3 S01 3 500 500 1000 707.
#> 4 S01 4 250 250 500 354.
#> 5 S01 5 125 125 250 177.
#> 6 S01 6 63 63 125 88.7
#> # ℹ 7 more variables: size_mid_phi <dbl>, retained_percent <dbl>,
#> # cum_finer_percent <dbl>, cum_coarser_percent <dbl>, is_open_lower <lgl>,
#> # is_open_upper <lgl>, measurement_method <chr>The gsd_tbl Object
gsd_tbl stores retained percentages, finite class
boundaries, cumulative percent finer and coarser values, and open-ended
class flags.
is_gsd_tbl(gs)
#> [1] TRUE
validate_gsd_tbl(gs)Data Quality Diagnostics
gs_diagnostics() is useful after reading data and before
calculating summary tables. It reports retained-total checks, open-ended
tails, unresolved D-values, threshold interpolation limits, and
fraction-scheme resolvability. The example wide file is a dry-sieve
dataset stored in a wide layout, so fine clay/silt thresholds may be
unresolved unless finer measurements or explicit extrapolation are
supplied.
head(gs_diagnostics(gs_wide, output = "summary"))
#> # A tibble: 6 × 8
#> sample_id n_ok n_warning n_error n_info has_error has_warning overall_status
#> <chr> <int> <int> <int> <int> <lgl> <lgl> <chr>
#> 1 S01 16 12 0 3 FALSE TRUE warning
#> 2 S02 18 9 0 4 FALSE TRUE warning
#> 3 S03 18 9 0 4 FALSE TRUE warning
#> 4 S04 16 12 0 3 FALSE TRUE warning
#> 5 S05 16 12 0 3 FALSE TRUE warning
#> 6 S06 18 9 0 4 FALSE TRUE warning
head(gs_diagnostics(
gs,
d_values = c(5, 10, 50, 90, 95),
fraction_schemes = c("wentworth_major", "usda", "uk_ssew")
))
#> # A tibble: 6 × 9
#> sample_id check status severity value expected parameter message
#> <chr> <chr> <chr> <chr> <chr> <chr> <chr> <chr>
#> 1 S01 missing_values ok none 0 finite … NA Retain…
#> 2 S01 negative_values ok none 0 no nega… NA No neg…
#> 3 S01 zero_total ok none 100 > 0 NA The re…
#> 4 S01 retained_total ok none 100 100 +/-… NA Retain…
#> 5 S01 duplicate_size_cla… ok none 0 0 dupli… NA No dup…
#> 6 S01 size_order ok none decr… coarse-… NA Size c…
#> # ℹ 1 more variable: recommendation <chr>Cumulative Curves and D-Values
D_p is the grain size at which p percent of
the sample is finer.
head(gs_cumulative(gs))
#> # A tibble: 6 × 7
#> sample_id boundary_id boundary_um boundary_mm boundary_phi percent_finer
#> <chr> <int> <dbl> <dbl> <dbl> <dbl>
#> 1 S01 1 2000 2 -1 99.4
#> 2 S01 2 1000 1 0 98.4
#> 3 S01 3 500 0.5 1 96.8
#> 4 S01 4 250 0.25 2 77.7
#> 5 S01 5 125 0.125 3 50.9
#> 6 S01 6 63 0.063 3.99 14.4
#> # ℹ 1 more variable: percent_coarser <dbl>
head(gs_d_values(gs, probs = c(10, 50, 90)))
#> # A tibble: 6 × 7
#> sample_id percentile grain_size_um grain_size_mm grain_size_phi
#> <chr> <dbl> <dbl> <dbl> <dbl>
#> 1 S01 10 40.9 0.0409 4.61
#> 2 S01 50 123. 0.123 3.02
#> 3 S01 90 390. 0.390 1.36
#> 4 S02 10 77.6 0.0776 3.69
#> 5 S02 50 175. 0.175 2.51
#> 6 S02 90 412. 0.412 1.28
#> # ℹ 2 more variables: interpolation_scale <chr>, extrapolated <lgl>Arbitrary Threshold Interpolation
gs_percent_finer() estimates percent finer at arbitrary
thresholds, including thresholds that were not measured exactly, as long
as the threshold is bracketed by finite class boundaries. Terminal
open-ended classes require explicit extrapolation or unresolved-value
handling.
head(suppressWarnings(gs_percent_finer(
gs,
sizes = c(2, 20, 50, 60, 63),
size_unit = "um",
extrapolate = "warn_linear"
)))
#> # A tibble: 6 × 8
#> sample_id threshold_um threshold_mm threshold_phi percent_finer
#> <chr> <dbl> <dbl> <dbl> <dbl>
#> 1 S01 2 0.002 8.97 -1.22
#> 2 S01 20 0.02 5.64 3.90
#> 3 S01 50 0.05 4.32 12.5
#> 4 S01 60 0.06 4.06 14.0
#> 5 S01 63 0.063 3.99 14.4
#> 6 S02 2 0.002 8.97 -131.
#> # ℹ 3 more variables: percent_coarser <dbl>, interpolation_scale <chr>,
#> # extrapolated <lgl>Grain-Size Indices
head(suppressWarnings(gs_grain_size_indices(
gs,
extrapolate = "warn_linear"
)))
#> # A tibble: 6 × 15
#> sample_id D10_um D25_um D30_um D50_um D60_um D75_um Cu Cc So_trask
#> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1 S01 40.9 76.9 84.5 123. 158. 233. 3.87 1.10 1.74
#> 2 S02 77.6 114. 128. 175. 205. 267. 2.64 1.03 1.53
#> 3 S03 69.5 91.3 100. 151. 193. 278. 2.77 0.748 1.74
#> 4 S04 60.2 81.2 88.5 125. 167. 258. 2.77 0.780 1.78
#> 5 S05 62.2 80.1 87.2 123. 167. 270. 2.69 0.731 1.84
#> 6 S06 76.1 104. 115. 216. 273. 346. 3.59 0.641 1.82
#> # ℹ 5 more variables: Sk_trask <dbl>, fine_content_percent <dbl>,
#> # fine_threshold_um <dbl>, fine_equivalent <dbl>, interpolation_scale <chr>Folk and Ward Statistics
head(suppressWarnings(gs_folk_ward(
gs,
extrapolate = "warn_linear"
)))
#> # A tibble: 6 × 26
#> sample_id D5_um D16_um D25_um D50_um D75_um D84_um D95_um D5_phi D16_phi
#> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1 S01 25.1 64.9 76.9 123. 233. 314. 468. 5.31 3.94
#> 2 S02 68.2 90.7 114. 175. 267. 346. 476. 3.87 3.46
#> 3 S03 63.5 77.5 91.3 151. 278. 347. 455. 3.98 3.69
#> 4 S04 32.3 69.6 81.2 125. 258. 333. 456. 4.95 3.85
#> 5 S05 35.3 68.7 80.1 123. 270. 347. 472. 4.82 3.86
#> 6 S06 68.5 86.2 104. 216. 346. 399. 475. 3.87 3.54
#> # ℹ 16 more variables: D25_phi <dbl>, D50_phi <dbl>, D75_phi <dbl>,
#> # D84_phi <dbl>, D95_phi <dbl>, mean_fw_phi <dbl>, mean_fw_um <dbl>,
#> # sorting_fw_phi <dbl>, skewness_fw <dbl>, kurtosis_fw <dbl>,
#> # interpolation_scale <chr>, any_extrapolated <lgl>, mean_size_class <chr>,
#> # sorting_class <chr>, skewness_class <chr>, kurtosis_class <chr>Moment Statistics and Open-Ended Classes
Moment statistics require an explicit open-end policy.
open_end = "extend_phi" estimates open-ended midpoints by
extending adjacent intervals in phi space.
head(suppressWarnings(gs_moments(
gs,
open_end = "extend_phi"
)))
#> # A tibble: 6 × 14
#> sample_id moment_method mean_moment mean_moment_unit mean_moment_um
#> <chr> <chr> <dbl> <chr> <dbl>
#> 1 S01 logarithmic_phi 2.97 phi 127.
#> 2 S02 logarithmic_phi 2.49 phi 179.
#> 3 S03 logarithmic_phi 2.65 phi 159.
#> 4 S04 logarithmic_phi 2.90 phi 134.
#> 5 S05 logarithmic_phi 2.85 phi 139.
#> 6 S06 logarithmic_phi 2.36 phi 194.
#> # ℹ 9 more variables: mean_moment_phi <dbl>, sd_moment <dbl>,
#> # sd_moment_unit <chr>, skewness_moment <dbl>, kurtosis_moment <dbl>,
#> # retained_percent_used <dbl>, open_end <chr>, open_end_estimated <lgl>,
#> # open_end_omitted <lgl>Grain-Size Fractions and Particle-Size Systems
head(gs_fractions_wide(gs, scheme = "wentworth_major"))
#> # A tibble: 6 × 4
#> sample_id gravel_percent sand_percent mud_percent
#> <chr> <dbl> <dbl> <dbl>
#> 1 S01 0.624 85.1 14.3
#> 2 S02 0.224 97.8 1.93
#> 3 S03 0.312 95.1 4.60
#> 4 S04 0.153 89.7 10.2
#> 5 S05 0.295 89.4 10.4
#> 6 S06 0.230 98.8 0.964
particle_size_systems()
#> # A tibble: 9 × 15
#> system_id system_name country_or_region domain clay_upper_um silt_upper_um
#> <chr> <chr> <chr> <chr> <dbl> <dbl>
#> 1 wentworth_ma… Wentworth … International sedim… NA NA
#> 2 gradistat GRADISTAT … International sedim… 4 63
#> 3 usda USDA textu… United States soil … 2 50
#> 4 isss Internatio… International soil … 2 20
#> 5 uk_ssew UK SSEW pa… United Kingdom soil … 2 60
#> 6 hypres HYPRES par… Europe soil … 2 50
#> 7 germany_63 Germany 63… Germany soil … 2 63
#> 8 australia_20 Australia … Australia soil … 2 20
#> 9 sweden_60 Sweden 60 … Sweden soil … 2 60
#> # ℹ 9 more variables: sand_upper_um <dbl>, gravel_lower_um <dbl>,
#> # clay_range <chr>, silt_range <chr>, sand_range <chr>, gravel_range <chr>,
#> # source_status <chr>, source_reference <chr>, notes <chr>Creating a Report Table
gs_parameters() is the recommended way to create a
compact grain-size summary table for reporting. It can combine D-values,
grain-size indices, Folk and Ward statistics, moment statistics, and
fractions in one row per sample.
report_table <- suppressWarnings(gs_parameters(
gs,
parameters = c("d_values", "indices", "folk_ward", "fractions"),
fraction_scheme = "gradistat",
extrapolate = "warn_linear"
))
head(report_table)
#> # A tibble: 6 × 41
#> sample_id D5_um D10_um D16_um D25_um D50_um D75_um D84_um D90_um D95_um D30_um
#> <chr> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1 S01 25.1 40.9 64.9 76.9 123. 233. 314. 390. 468. 84.5
#> 2 S02 68.2 77.6 90.7 114. 175. 267. 346. 412. 476. 128.
#> 3 S03 63.5 69.5 77.5 91.3 151. 278. 347. 402. 455. 100.
#> 4 S04 32.3 60.2 69.6 81.2 125. 258. 333. 395. 456. 88.5
#> 5 S05 35.3 62.2 68.7 80.1 123. 270. 347. 410. 472. 87.2
#> 6 S06 68.5 76.1 86.2 104. 216. 346. 399. 439. 475. 115.
#> # ℹ 30 more variables: D60_um <dbl>, Cu <dbl>, Cc <dbl>, So_trask <dbl>,
#> # Sk_trask <dbl>, fine_content_percent <dbl>, fine_threshold_um <dbl>,
#> # fine_equivalent <dbl>, interpolation_scale <chr>, D5_phi <dbl>,
#> # D16_phi <dbl>, D25_phi <dbl>, D50_phi <dbl>, D75_phi <dbl>, D84_phi <dbl>,
#> # D95_phi <dbl>, mean_fw_phi <dbl>, mean_fw_um <dbl>, sorting_fw_phi <dbl>,
#> # skewness_fw <dbl>, kurtosis_fw <dbl>, any_extrapolated <lgl>,
#> # mean_size_class <chr>, sorting_class <chr>, skewness_class <chr>, …plot_gradistat_summary() is for visual diagnostics.
Standard R functions can export tables when needed:
write.csv(report_table, "grain_size_summary.csv", row.names = FALSE)Keeping export in standard R workflows avoids tying grainsizeR to a specific report format.
Basic Plots

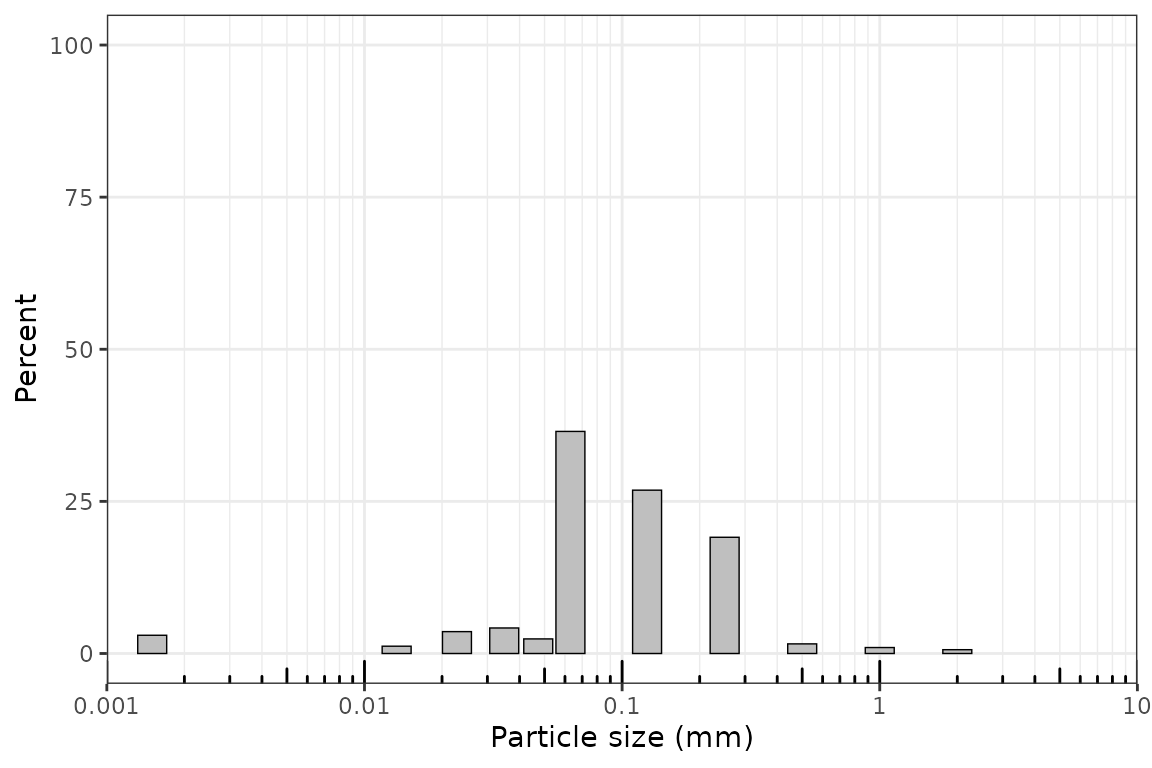

plot_distribution(gs, sample = "S01")

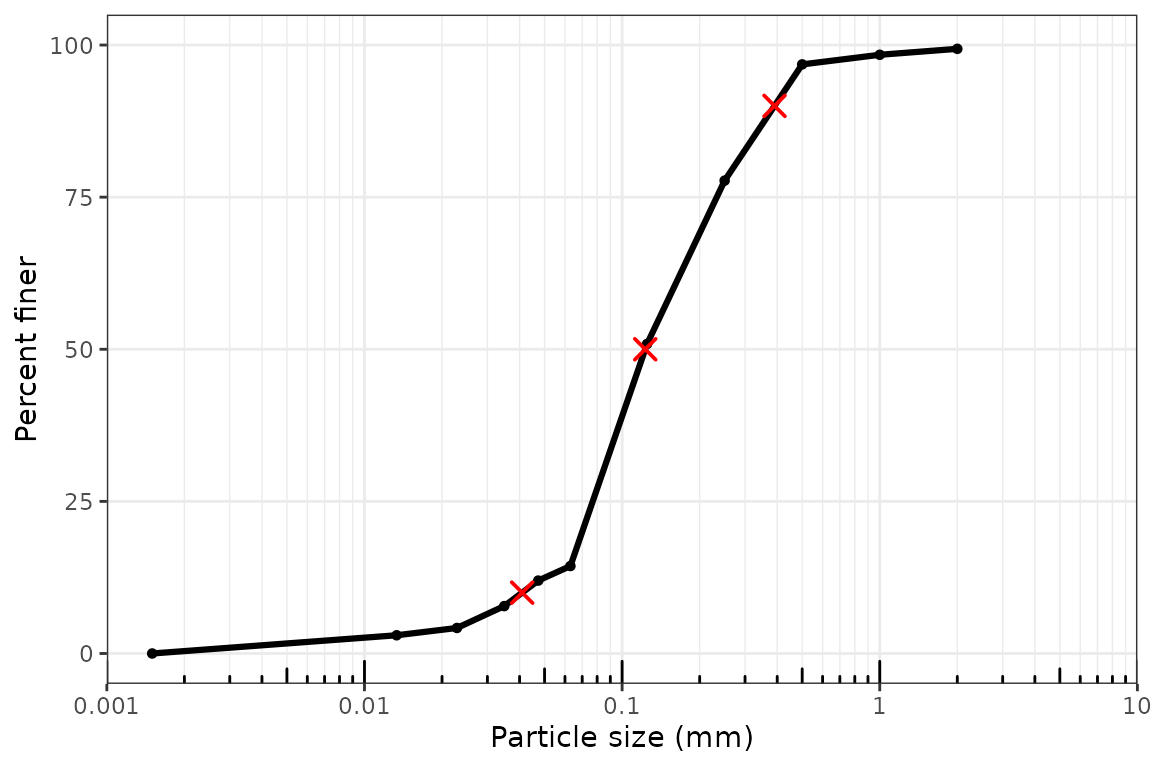

plot_cumulative(gs, sample = "S01", show_percentiles = c(10, 50, 90), extrapolate = "warn_linear")

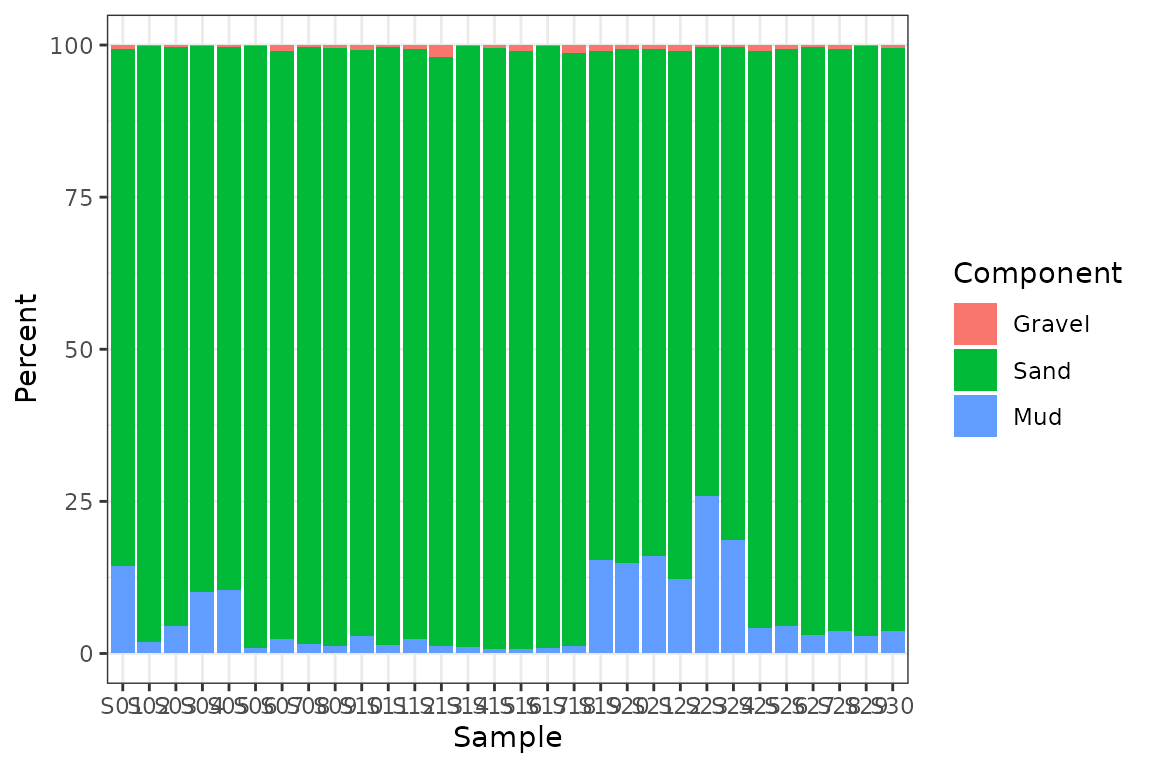

plot_fractions(gs, scheme = "wentworth_major")
plot_gradistat_summary() provides a single-sample
diagnostic plot that combines retained distribution, cumulative percent
finer, D-value markers, and summary statistics. It is inspired by common
sediment grain-size reporting needs, not copied from GRADISTAT
software.

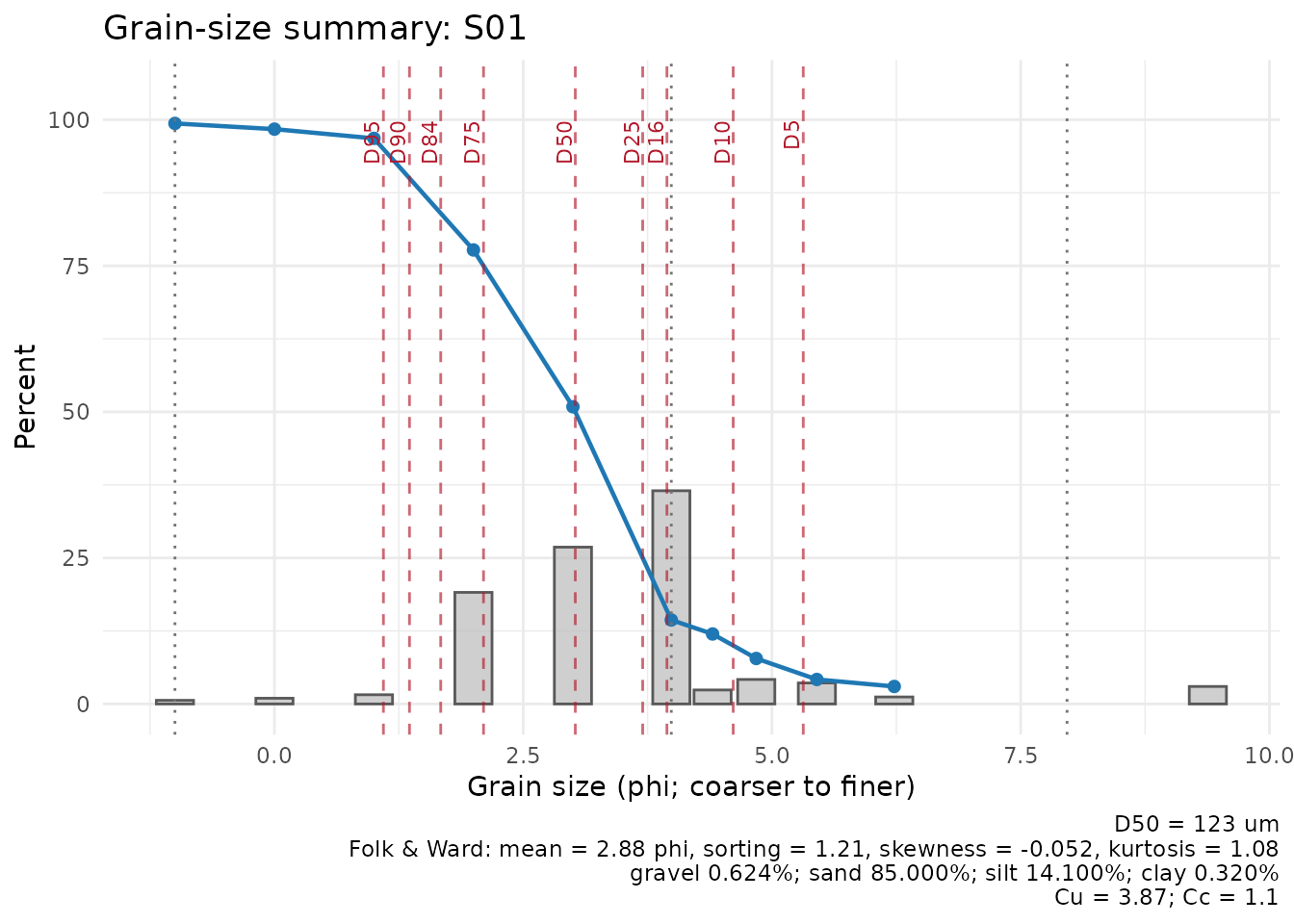

suppressWarnings(plot_gradistat_summary(
gs,
sample_id = "S01",
extrapolate = "warn_linear"
))
