Plot retained grain-size distributions

plot_distribution() plots retained grain-size percentages by particle-size class. Metric displays center bars on the original particle-size class values after unit conversion, with lower open-ended classes displayed at 0.0015 mm for plotting only.

Usage

plot_distribution(
  x,
  x_scale = c("log10", "phi", "linear_um"),
  type = c("bar", "line"),
  particle_unit = c("mm", "um", "milli", "micro"),
  sample = NULL,
  sample_id = NULL,
  show_open_ends = TRUE,
  cumulative = FALSE,
  facet_by_sample = NULL
)

Arguments

x

A valid gsd_tbl object.

x_scale

Display scale for the grain-size axis. "log10" uses grain-size values in particle_unit; "linear_um" uses micrometre values; "phi" uses phi units.

type

Plot type: "bar" or "line".

particle_unit

Particle-size unit for x_scale = "log10". Preferred values are "mm" for millimetres and "um" for micrometres. Aliases "milli" and "micro" are also accepted.

sample

Optional sample selector. A character value selects by sample ID; a numeric value selects by one-based sample index using the order in which samples appear in x.

sample_id

Optional character vector of sample identifiers to include. Kept for backward compatibility; use sample for new code.

show_open_ends

Should open-ended classes be included using raw size labels as plotting proxies?

cumulative

Should a cumulative percent-finer line be overlaid on the retained-size bars? This combined display is useful for GRADISTAT-style grain-size summaries.

facet_by_sample

Ignored compatibility argument. Distribution plots are single-sample displays; use sample or sample_id to select one sample, loop over samples, or arrange returned plots externally with another plotting package.

Value

A ggplot object.

Examples

x <- data.frame(
  sample_id = "A",
  size_mm = c(2, 1, 0.5, 0.25, 0.125, 0.063),
  retained_proportion = c(0.05, 0.10, 0.25, 0.30, 0.20, 0.10)
)
gsd <- as_gsd_tbl(x, sample_id, size_mm, retained_proportion)

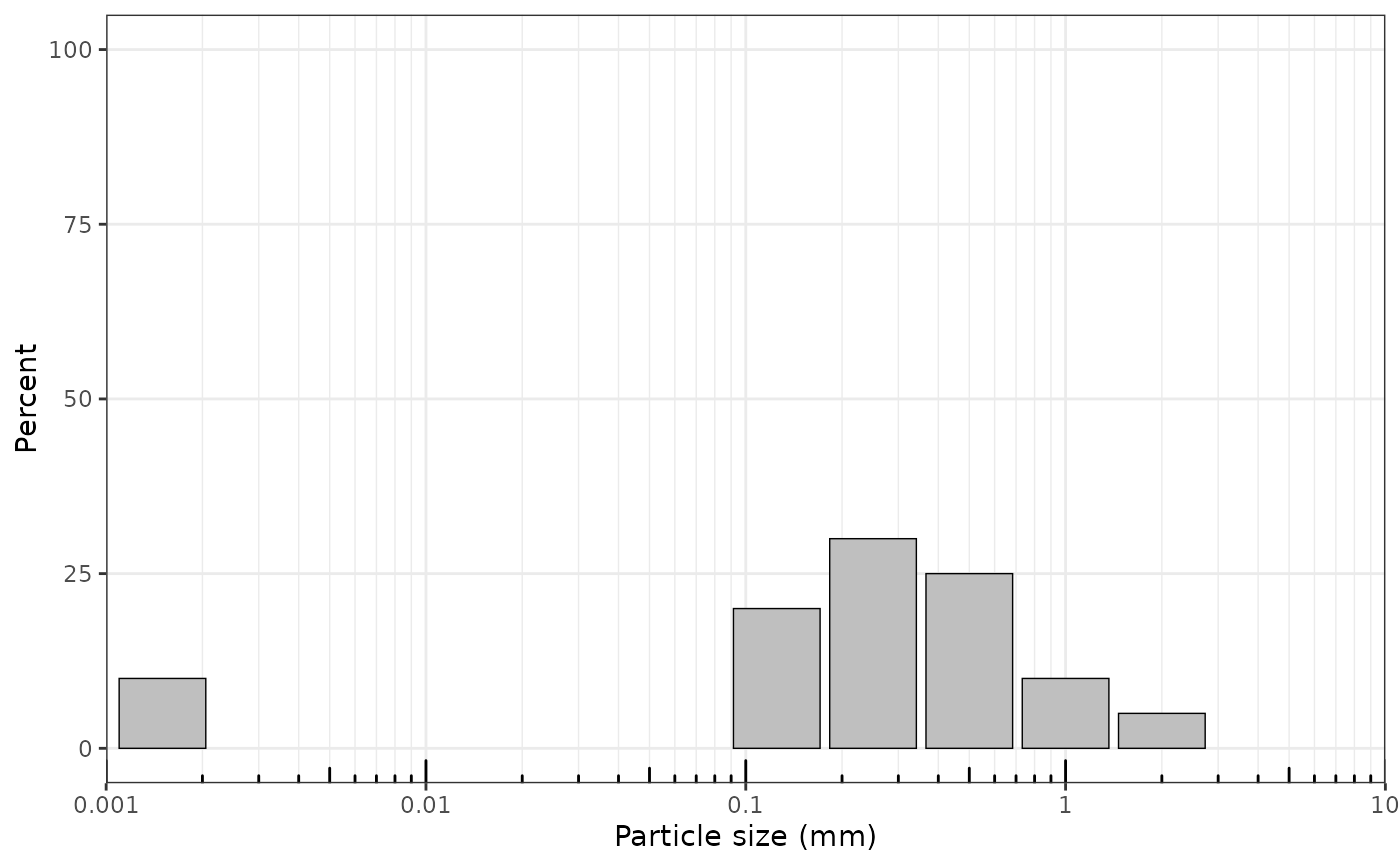

plot_distribution(gsd, x_scale = "log10")

plot_distribution(gsd, sample = 1)

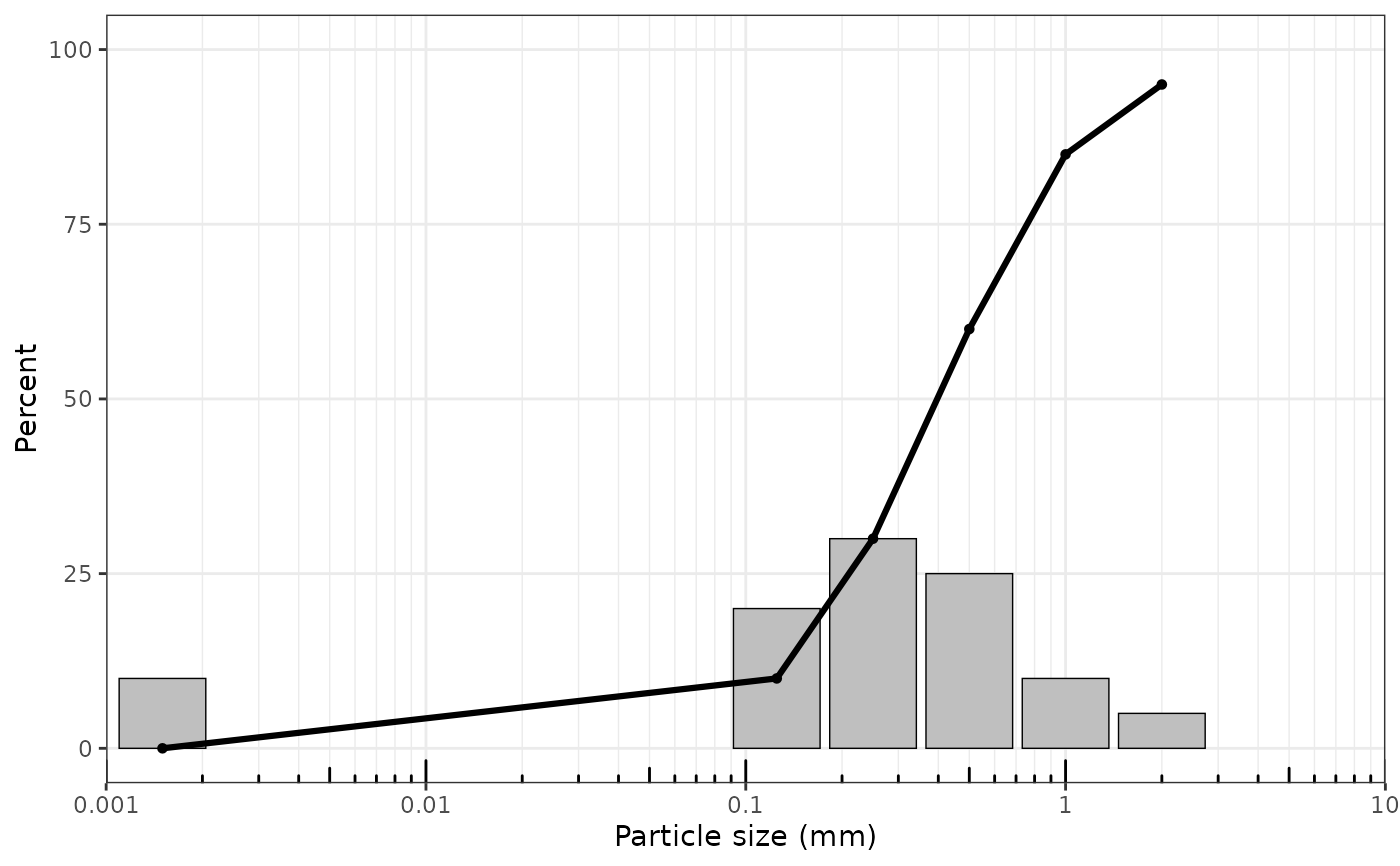

plot_distribution(gsd, cumulative = TRUE)

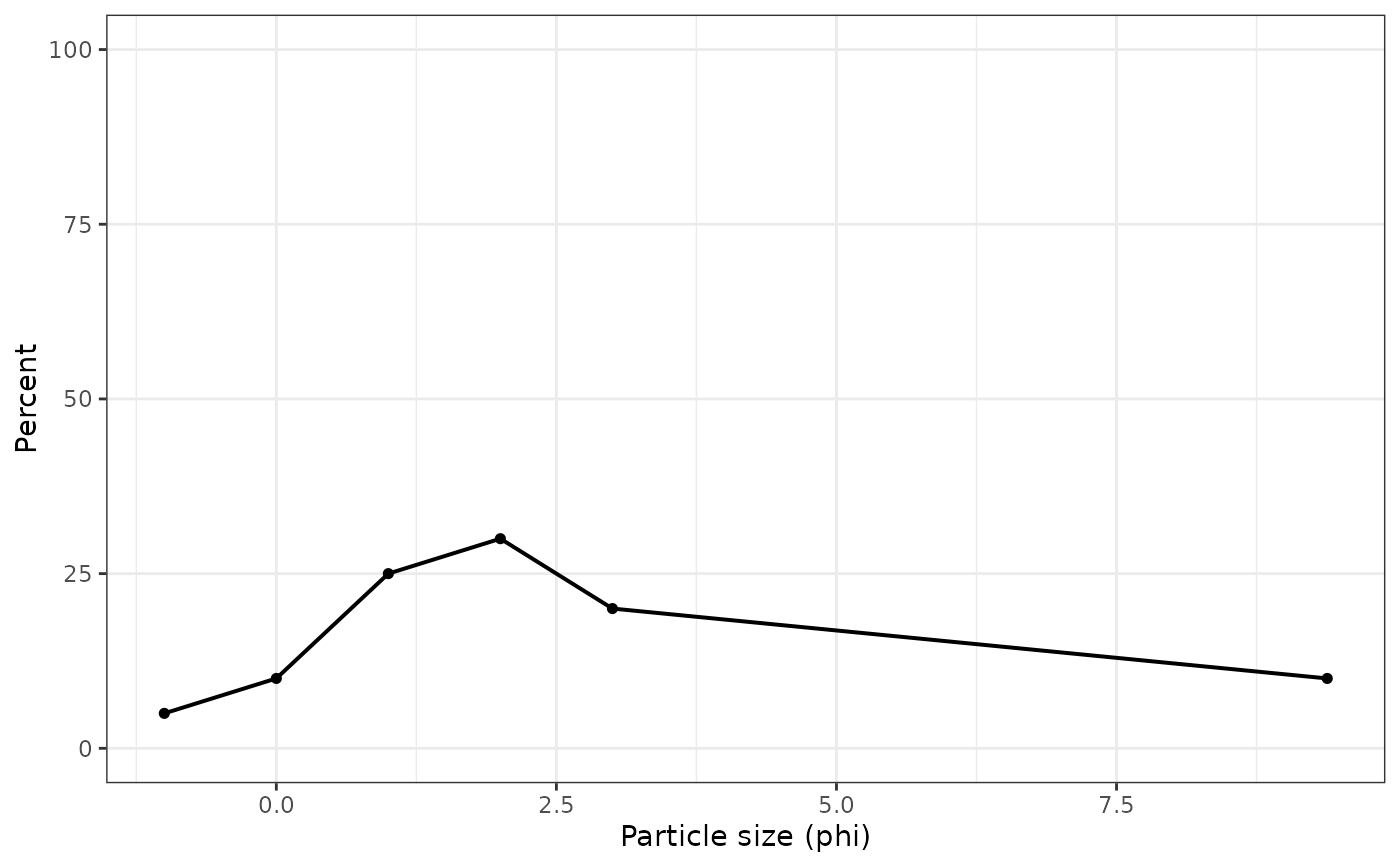

plot_distribution(gsd, x_scale = "phi", type = "line")
