Plot grain-size fraction composition — plot

plot_fractions() plots fraction percentages from gs_fractions() as stacked bars with one bar per sample. Fraction components use the normalized particle-size scale from gsd_tbl; users do not need to specify size units for plotting after import.

Usage

plot_fractions(
  x,
  scheme = "wentworth_major",
  normalize = "none",
  sample = NULL,
  sample_id = NULL,
  fill_palette = c("default", "YlOrBr", "none"),
  na_to_zero = FALSE
)

Arguments

x: A valid gsd_tbl object.
scheme: Built-in fraction scheme name passed to gs_fractions().
normalize: Normalization mode passed to gs_fractions().
sample: Optional sample selector. A character value selects by sample ID; a numeric value selects by one-based sample index using the order in which samples appear in x.
sample_id: Optional character vector of sample identifiers to include. Kept for backward compatibility; use sample for new code.
fill_palette: Fill palette. "default" uses ggplot2 defaults, "YlOrBr" uses grDevices::hcl.colors() with a yellow-orange-brown sequence, and "none" leaves the scale unchanged.
na_to_zero: Should unresolved fraction percentages be plotted as zero? The default FALSE preserves NA values returned by gs_fractions(). Use TRUE to draw stacked bars without dropping components whose thresholds could not be resolved from the available grain-size classes. This affects only the plotted data and does not change the underlying gs_fractions() calculation.

Value

A ggplot object.

Examples

x <- data.frame(
  sample_id = c("A", "A", "A", "A", "B", "B", "B", "B"),
  size_mm = rep(c(2, 0.5, 0.063, 0.001), 2),
  retained_proportion = c(0.20, 0.50, 0.30, 0, 0.10, 0.60, 0.30, 0)
)
gsd <- as_gsd_tbl(x, sample_id, size_mm, retained_proportion)

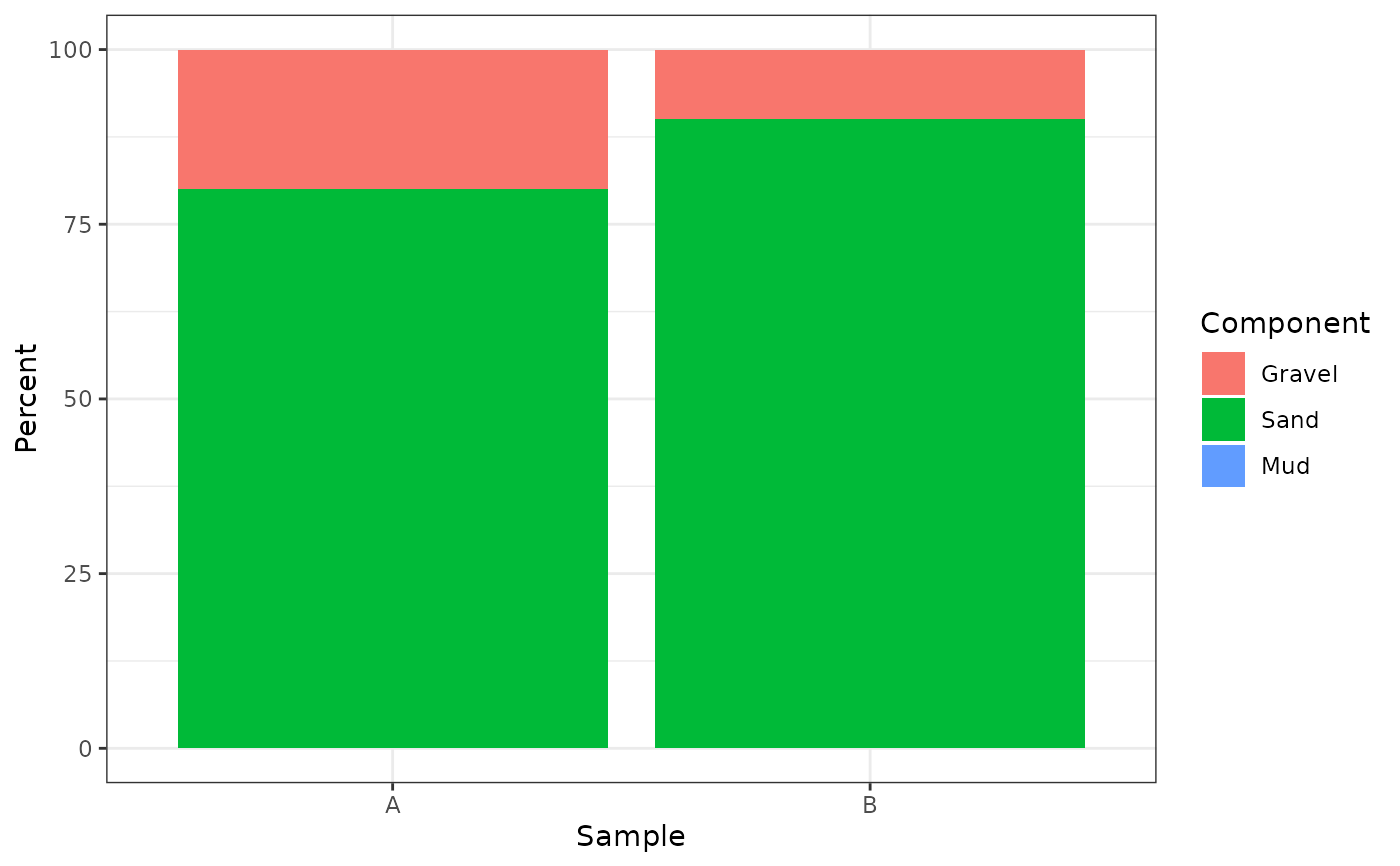

plot_fractions(gsd, scheme = "wentworth_major")

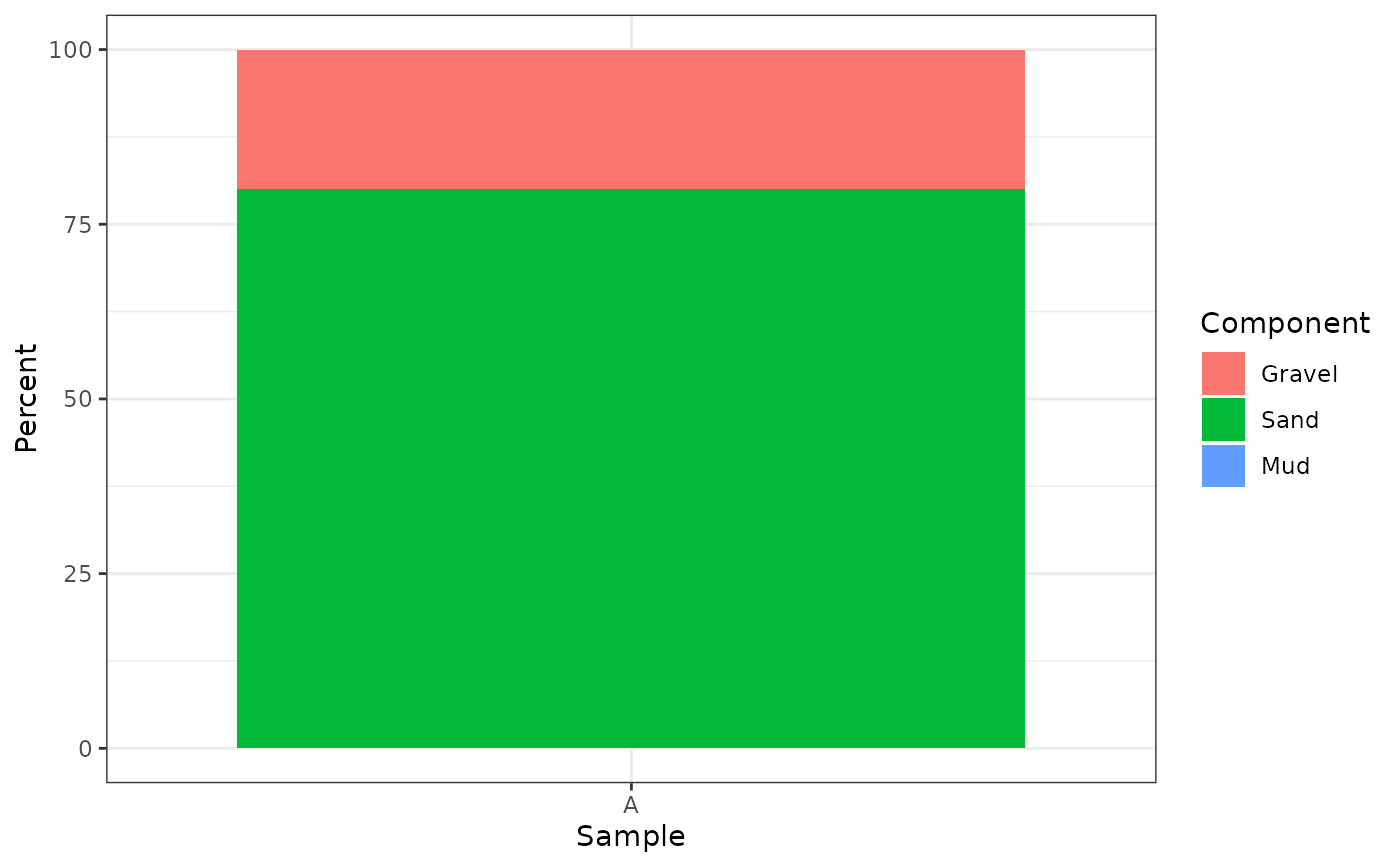

plot_fractions(gsd, sample = 1, scheme = "wentworth_major")

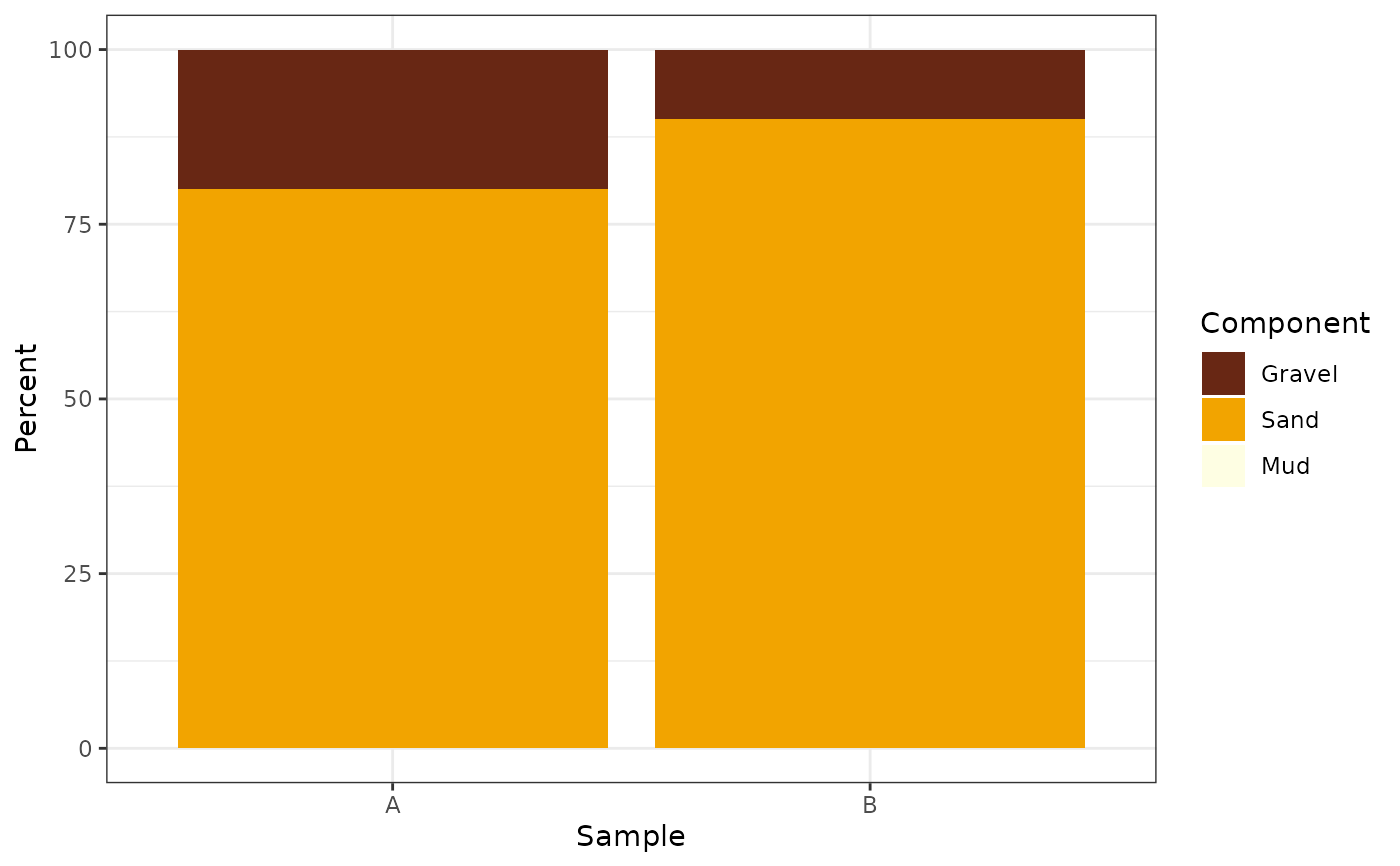

plot_fractions(gsd, scheme = "gravel_sand_mud", fill_palette = "YlOrBr")
