Plot samples on a texture ternary plot

Source: R/plot-trigon.R
plot_texture_ternary.Rd

plot_texture_ternary() is the preferred texture ternary plotting function. plot_texture_triangle() is a compatibility alias with equivalent behavior. Both functions plot summarized ternary component percentages and optional user-supplied texture polygons. A fraction scheme is the rule used by gs_fractions() to convert size-bin data into components, a ternary basis is the three-component set drawn on the diagram, and a texture system is the classification or diagram style selected by scheme. The package draws the ternary diagram with ggplot2 and does not depend on external ternary plotting packages.

Usage

plot_texture_ternary(
  x,
  scheme = "gradistat",
  components = NULL,
  normalize = "none",
  sample_id = NULL,
  labels = FALSE,
  polygons = NULL,
  show_polygons = TRUE,
  show_polygon_labels = TRUE,
  polygon_alpha = 0.15,
  classify = FALSE,
  basis = c("gravel_sand_mud", "sand_silt_clay_no_gravel"),
  point_id = NULL,
  show_boundaries = TRUE,
  show_classes = TRUE,
  show_class_labels = show_classes,
  show_sample_labels = labels,
  sample_label_size = 3,
  class_label_size = 3,
  point_size = 1.8,
  point_color = "black",
  point_alpha = 0.8,
  color_by = NULL,
  label_style = c("inside", "callout", "none")
)

Arguments

x

A valid gsd_tbl object.

scheme

Texture ternary plotting system. Use "gradistat" for GRADISTAT ternary diagrams or "usda" for USDA major-class ternary diagrams. Legacy raw-gsd_tbl schemes such as "isss" and "uk_ssew" remain available through plot_trigon().

components

Optional character vector of three component names in left, right, top order.

normalize

Normalization mode passed to gs_fractions_wide().

sample_id

Optional character vector of sample identifiers to include.

labels

Should sample labels be drawn?

polygons

Optional user-supplied texture polygon data.

show_polygons

Should supplied polygons be drawn?

show_polygon_labels

Should polygon class labels be drawn?

polygon_alpha

Fill alpha for polygon overlays.

classify

Should sample points be classified with classify_texture()?

basis

GRADISTAT ternary plotting basis. Supported values are "gravel_sand_mud" and "sand_silt_clay_no_gravel".

point_id

Optional column name used for point labels in GRADISTAT data-frame plots.

show_boundaries

Should GRADISTAT classification boundaries be drawn?

show_classes

Should GRADISTAT class labels be drawn?

show_class_labels

Alias for show_classes.

show_sample_labels

Should sample labels be drawn? Defaults to FALSE for texture ternary plots.

sample_label_size

Text size for sample labels.

class_label_size

Text size for class labels.

point_size

Sample point size.

point_color

Constant sample point color used when color_by is NULL.

point_alpha

Sample point alpha.

color_by

Optional column name in the summarized ternary table used to map sample point color.

label_style

Label style for GRADISTAT class labels. "inside" and "callout" use the current readable label placement, and "none" suppresses them.

Value

A ggplot object.

Details

The intended GRADISTAT workflow is to read grain-size data, compute fractions with gs_fractions() or gs_fractions_wide(), then plot those summarized components. For scheme = "gradistat", use basis = "gravel_sand_mud" with gravel, sand, and mud components, or basis = "sand_silt_clay_no_gravel" with sand, silt, and clay components. Official gs_fractions() long output, official gs_fractions_wide() output with *_percent columns, and canonical summarized tables with component columns are supported. Component column matching is case-insensitive, so Sand and SAND are treated as sand; arbitrary spelling, punctuation, or suffix variants are not interpreted. Raw gsd_tbl input is not plotted directly for GRADISTAT ternary diagrams.

For scheme = "usda" and data-frame inputs, the function accepts summarized sand, silt, and clay percentage columns or official gs_fractions_wide(..., scheme = "usda") output and draws USDA major-class boundaries. For scheme = "gradistat", official gs_fractions_wide() output from the gradistat and gravel_sand_mud schemes can be plotted directly. Legacy raw-gsd_tbl plotting for older trigon schemes remains available through plot_trigon().

Examples

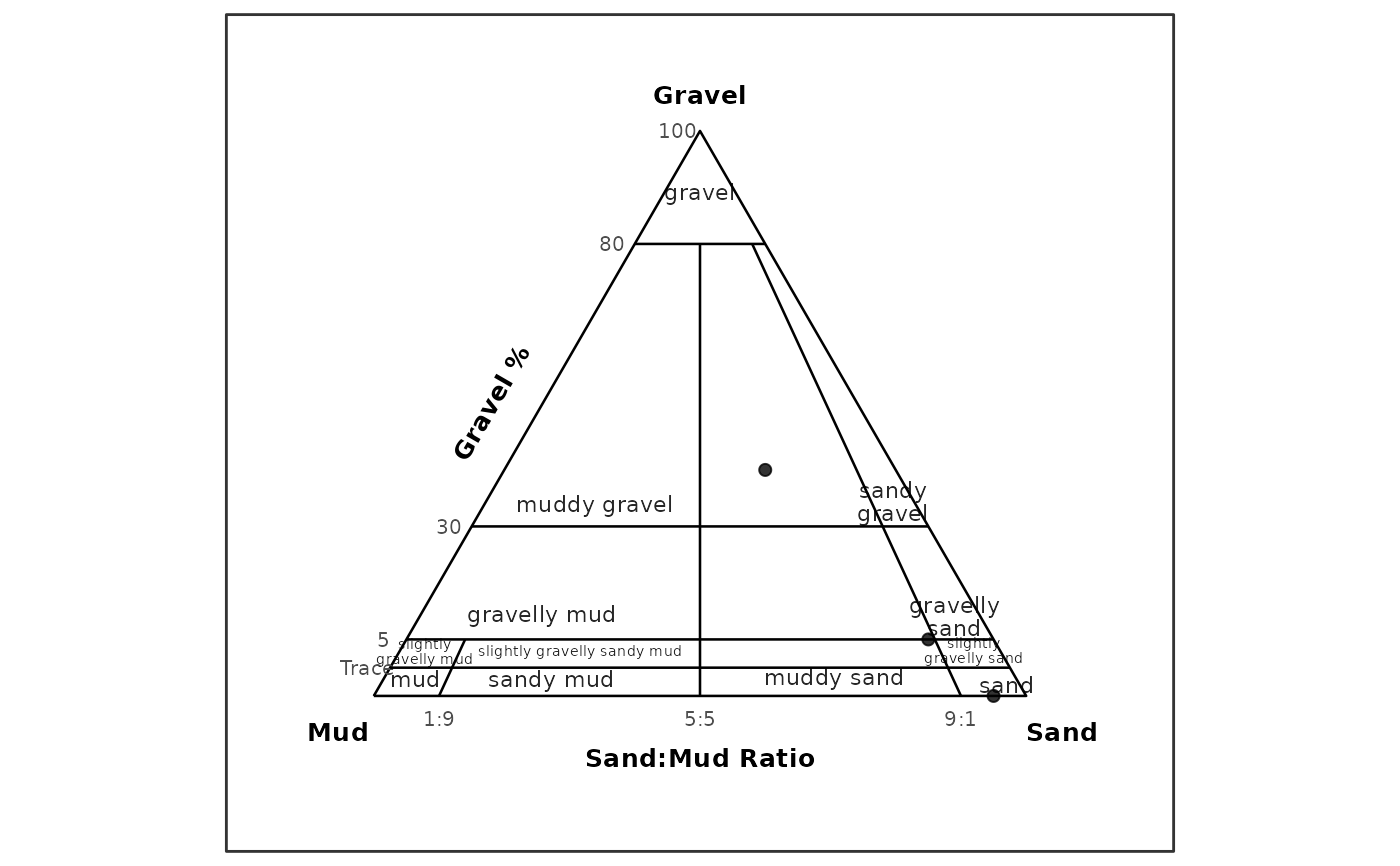

gsm <- data.frame(
  sample_id = c("A", "B", "C"),
  gravel = c(0, 10, 40),
  sand = c(95, 80, 40),
  mud = c(5, 10, 20)
)

plot_texture_ternary(
  gsm,
  scheme = "gradistat",
  basis = "gravel_sand_mud",
  point_id = "sample_id"
)

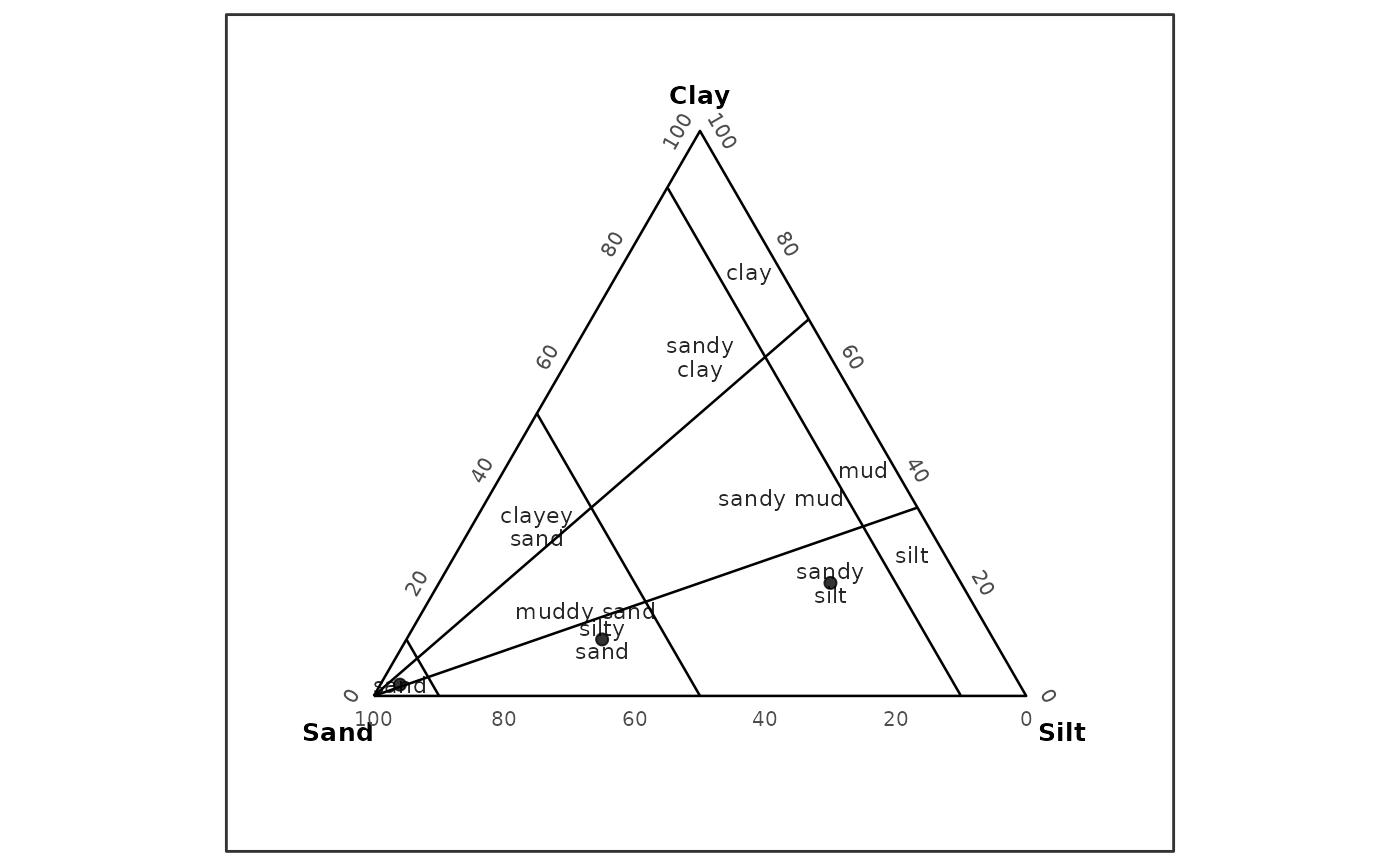

ssc <- data.frame(
  sample_id = c("A", "B", "C"),
  sand = c(95, 60, 20),
  silt = c(3, 30, 60),
  clay = c(2, 10, 20)
)

plot_texture_ternary(
  ssc,
  scheme = "gradistat",
  basis = "sand_silt_clay_no_gravel",
  point_id = "sample_id"
)
